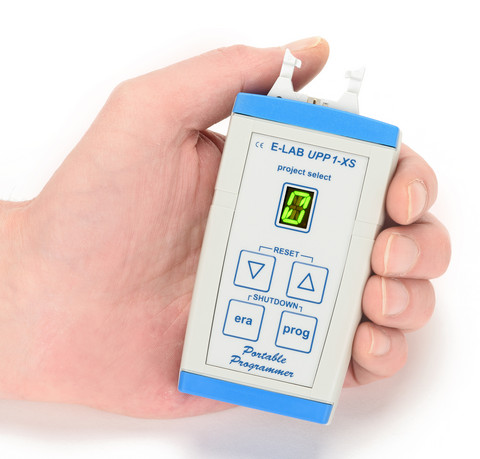

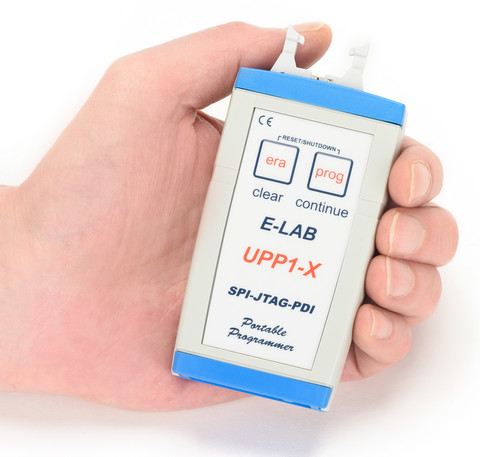

InCircuit programmer with mini-SD
FlashCard
for AVR - AT89Sxx - AT89LSxx - AT89LPxx - TI/Chipcon CC2430 - R8C
UPP1-USB -- JTAG, SPI, TPI
and PDI modes
- UPP1-USB connects to the PC the USB interface.
- UPP1-USB works in the High-Speed USB-2 mode (480Mbit/sec).
- Can also be connected to USB-1 ports and HUBs

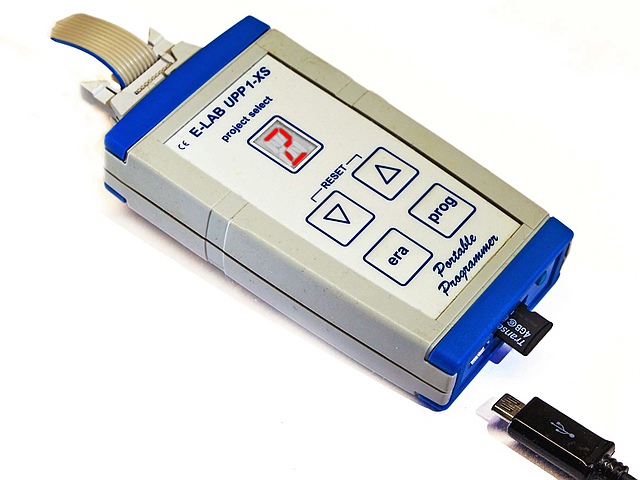

- All data and parameters are stored in an exchangeable MMC Flashcard
- No powersupply necessary. The unit is powered direct from the
USB port of the
PC or the target.
- Adapts automatical to the targets voltage (2.7-5.5Volt ca. 30mA)
- Programmer can supply the target with a variable voltage, 3.3
to 5.2Volts, 30..300mA
- Easy and extensive software
- Software runs under XP, Vista32
and Windows7, 32 and 64bit
- Self update with new firmware through a PC for future enhancements
- Supports all SPI, JTAG, PDI and TPI programmable AVRs
- Supports XMegas in PDI mode
- Supports Tinys in TPI mode
- Supports all SPI programmable AT89Sxx, AT89LSxx
and AT89LPxx types
- Supports the TI/ChipCon CC1110, CC2510 and CC2430
family
- Small, light weight and handy unit 110x55x20mm
- Hexfiles are loaded from PC into the programmer and stored
- CPU type, fusebits etc are selected from the Host/PC.
- Programmer can be moved from target to target w/o PC connection
or interaction.
- Checksum generation
- Available as high volume production programmer
- programs 128kB flash (full mega128 with JTAG) in 3..4sec
Extended version "S"

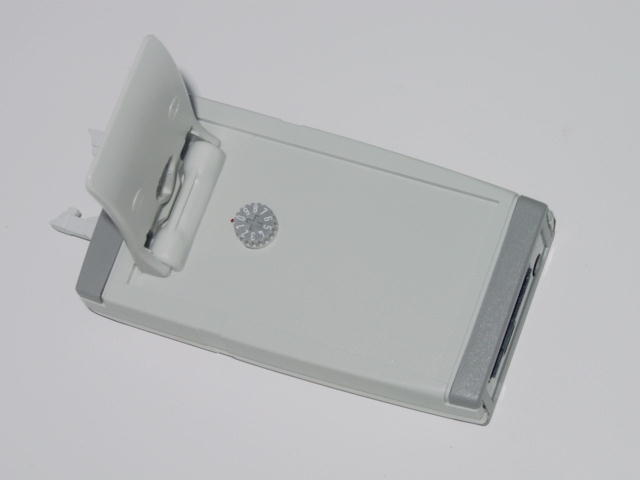

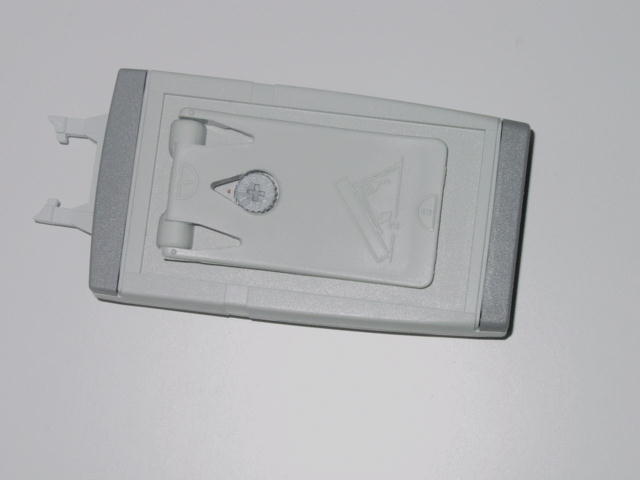

- Offline upto 10 different projects selectable
through a rotary select switch
on the bottom of the unit.
- accepts MMC and SD cards
More options
- Option external switching power supply 100..250VAC with 8Volt/400mA
(not included)
- Option adaptor from Atmel 6pol SPI to Atmel 10pol program connection
(not included)
- Option adaptor from E-LAB JTAG to Atmel JTAG program connection
(not included)
- Option adaptor from UPP1 6pin to TI/ChipCon CC2430 evaluation
board (not included)
Documentation/Firmware

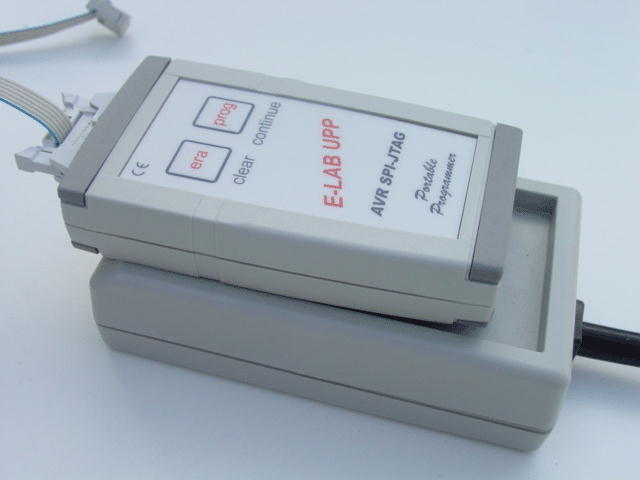

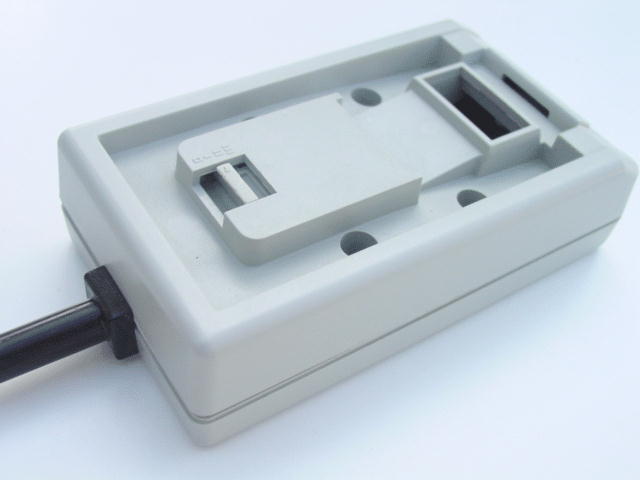

Remote Control of a UPP1-USB Type D in the production
through
a process control of any kind by the Docking
Station
The programmer UPP1-USB Type D must be hooked into
it's Docking Station and is then
connected with it by a ribbon cable. The communikation of the programmer
with the
controlling unit (PC, process computer, PLC) is accomplished through
7 control lines
of the Docking Station. This is done via photo couplers.
One out of upto sixteen programs/projects stored in the MMC Card
can be selected.
The programmer can be started and the state can be interrogated.
The whole communication is managed by the Docking Station. The
USB plug of the
programmer is not used. The must have an external supply of 8..24V=
with 200mA max.
The station supplies the programmer with 8V= so it is possible that
the target system
(CPU) can be supplied with a programmable voltage (3.3..5.5Volt,
30 or 100mA max).
The programmer can also be operated without the Docking Station,
in indirect mode
with a PC or stand-alone, exactly as the standard version.
- Control lines optical de-coupled
- Line levels 5..24Volt=
- Input polarity selectable, low-active or high-active
- Input resistance 2.2kOhm
- Open collector output, max. 35V=
- Output resistance 1kOhm
- Inputs and outputs short circuit proof and protected against
false polarity
- 4 binary program/project select inputs (1 of 16)
- 1x start input, 1x status output, 1x error output
- Cage clamp connectors used for simple wiring
- Auto resetting electronic fuse in the power supply line
- UPP1-programmer type D is simply hooked into the Docking Station
without any tools
- Very simple exchange of the UPP1 without using any tool.
- Very service friendly.
Comprehensive description and mounting instructions in the UPP1
manual |
UPP1-USB
price €220.- +ship
|
