The Entry and for Production:

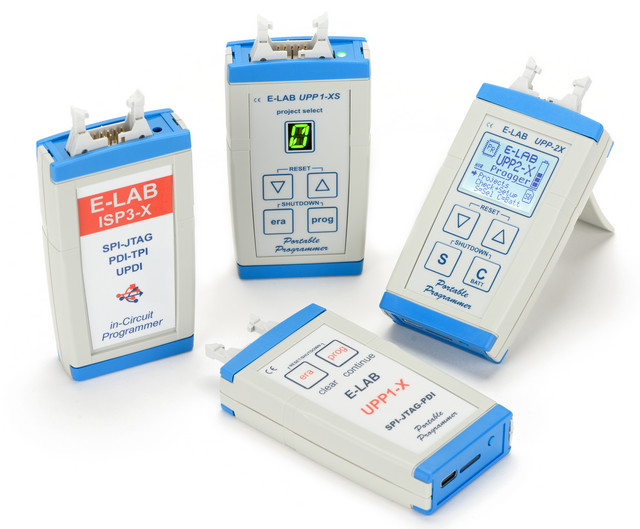

ISP3-X

InCircuit programmer for AVR - AT89Sxx - AT89LSxx - AT89LPxx - TI CC2430

USB versions
JTAG, SPI, TPI, UPDI and PDI programming

• ISP3-X connects to the PC the USB interface.
  • NEW - with more robust USB-C socket.
  • • ISP3-X works in the High-Speed USB-2 mode . Can also be connected to USB-1 ports and HUBs
    • No power supplu necessary. The ISP3 can be supplied from the PC interface (USB) or from target.
    • Automatic adaption to the target voltage (1.7-5.5Volt, ca. 40mA)
    • Powerful and extensive software
    • Software runs on XP. Vista and Windows7, Windows10/11, 32bit and 64bit
    • Smal, leightweight and handy device ca. 100x55x20mm
    • Supports all SPI, JTAG, PDI, UPDI and TPI programmable AVRs
    • Supports the AVR Tinys in TPI and UPDI mode
    • Supports XMegas in PDI mode
    • Supports all SPI programmable AT89Sxx, AT89LSxx and AT89LPxx types
    • Supports the TI/ChipCon CC1110, CC2510 and CC2430 family
    • Programmable output voltage (supply) for the target system. 1.7..5.2Volt 30mA..300mA
    • Self update with new firmware through a PC for future enhancements
    • SPI, JTAG, PDI and TPI programming support
    • programs 128kB flash (full mega128 with JTAG) in 3..4sec
    • ISP3-X doesn't need any adapter for PDI programming !
    • Can process AES encrypted projects with the tool PackProg.exe

    • Option external switching power supply 100..250VAC with 8Volt/400mA (not included)
      Option adaptor from Atmel 6pin SPI to Atmel 10pin program connection (not included)
      Option adaptor from E-LAB JTAG to Atmel JTAG program connection (not included)
      Option adaptor from ISP3 6pin to TI/ChipCon CC2430 evaluation board (not included)
      ISP3-X with USB connection is optimal suitable for development desktop, programming stations and repair stations.
    • WIN 7 and Windows 10/11 32bit and 64bit supported

    Included accessories

    • USB cable
    • Programmer cables 6pin and 10pin
    • USB Stick with manual and Software

    Documentation/Firmware

    ISP3-X debug Profi

    ISP3-X €139.- +MwSt. +ship
